广东南磁科技有限公司 Guangdong South Magnet Technology CO. Ltd. 展位号：C178 展出产品：新能源汽车水泵转子、电机霍尔传感器磁片、无刷直流风扇电机磁环、节能电机永磁转子等 网址：www.igdsmt.com
广东南磁科技有限公司是一家集注塑磁性产品，磁性材料,粘结钕铁硼，烧结钕铁硼，稀土合金材料等研发、生产、销售、服务于一体的国家高新技术企业。公司位于粤港澳大湾区 ● 珠海，创立于2008年，注册成立于2010年，拥有自建厂房1万多㎡,注册资金1000万元，技术管理团队60人,经过多年的发展与创新，目前年销售额达到1.5亿元。 公司主要生产电机转子类磁性制品，汽车水泵叶轮，注塑铁氧体颗粒，粘结钕铁硼，烧结钕铁硼等系列磁性产品，产品用于信息产业，汽车工业，家用电器，医疗设备及磁力机械等国民经济领域。 公司秉着成为磁性材料专家的愿景，为提高生产管理能效，保证品质优先，大规模引进高效自动化生产设备及检测仪器，并通过了ISO9001、IATF16949质量管理体系认证，同时又与国内知名高校建立联合实验室，研发创新，完善产品系列，并荣获多项发明专利和实用新型专利。 公司将以高端的品质和专业的技术为保障，为客户提供全方位的磁性产品配套服务。
Guangdong South Magnet Technology Co., Ltd. is a national hi-tech enterprise integrating R&D, manufacturing, sales and service of injection molded magnetic products, magnetic materials, bonded NdFeB, sintered NdFeB and rare earth alloy materials, etc. The company is located in the Guangdong, Hong Kong and Macau Great Bay Area ● Zhuhai, founded in 2008, registered in 2010, with a self-built factory of more than 10,000 square meters, registered capital of 10 million yuan, technical management team of 60 people, after years of development and innovation, the annual sales reached 150 million yuan. The company mainly produces magnetic products such as motor rotors, automobile water pump impellers, injection molded ferrite particles, bonded NdFeB, sintered NdFeB and other series of magnetic products, which are used in national economic fields such as information industry, automobile industry, household appliances, medical equipment and magnetic machinery. With the vision of becoming an expert in magnetic materials, the company has introduced efficient automatic production equipment and testing instruments on a large scale in order to improve the energy efficiency of production management and ensure the priority of quality and has passed ISO9001 and IATF16949 quality management system certification. we also have established joint laboratories with famous universities in China to research and develop innovations and improve the product series and won many invention patents and utility model patents. The company will provide customers with a full range of magnetic products supporting services with high-end quality and professional technology as a guarantee. New energy automobile pump rotor

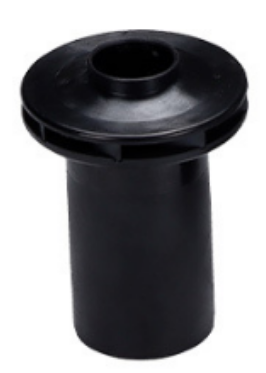

这是一种实用新型结构的水泵叶轮，转子组件外部材质与叶轮下盖二次包塑材质均为塑料，避免由于不同材料导致热膨胀系数不一致导致冷热交替后产生间隙，大大降低了液体渗透腐蚀的风险；另外的，此结构中转子组件预先加工成组件结构，与叶轮下盖、轴承连接时直接采用整体式包塑，连接方式加工，加工方便，连接结构定，保证成品的合格率。
This is a utility model structure of the water pump impeller, the external material of the rotor assembly and the impeller under the cover of the secondary plastic coating material are plastic, to avoid different materials caused by thermal expansion coefficient is inconsistent resulting in hot and cold after the gap, greatly reducing the risk of liquid penetration corrosion; In addition, the rotor component in this structure is pre-processed into a component structure, and connected with the lower cover of the impeller and bearing, directly using integral plastic packaging, connection processing, convenient processing, stable connection structure, to ensure the qualified rate of finished products. Motor Hall sensor magnetic plate

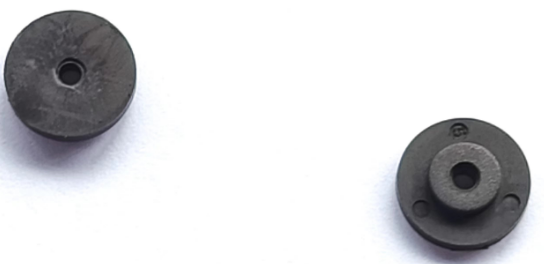

这是一种磁感应传感器，磁环和霍尔元件组成感应组合，磁环随转子转动，霍尔感应随转子转动的磁环，磁环通常采用多对极（偶数），比如2对极、3对极、4对极等，每对极分为N、S两极。霍尔元件触发有全极、双极、单极极三种，现有热水器水流量传感器采用较多的是单极锁存方式，即N极和S极依次通过霍尔感应位置时输出一个脉冲信号，换句话说，就是一对极磁极输出一个脉冲信号，多对极磁极输出多个脉冲信号。非晶、纳米晶磁环(超微晶铁芯)，开口切口气隙的方式，中间加入霍尔芯片等等，来实现对电流的监测采样等等目的。
This is a kind of magnetic induction sensor, magnetic ring and Hall components composed of induction combination, magnetic ring rotation with the rotor, Hall induction rotation with the rotor of the magnetic ring, magnetic ring usually adopts multiple pairs (even), such as 2 pairs of poles, 3 pairs of poles, 4 pairs of poles, each pole is divided into N, S poles. There are three kinds of Hall element trigger: full pole, double pole and single pole. The existing water flow sensor of water heater uses more single pole latching mode, that is, N pole and S pole output a pulse signal when passing through Hall induction position in turn. In other words, it is a pair of magnetic pole output a pulse signal, and a pair of magnetic pole output multiple pulse signals. Amorphous, nanocrystalline magnetic ring (ultramicrystalline core), the way of opening and cutting the air gap, the addition of Hall chip in the middle, etc. Brushless DC fan motor magnetic ring

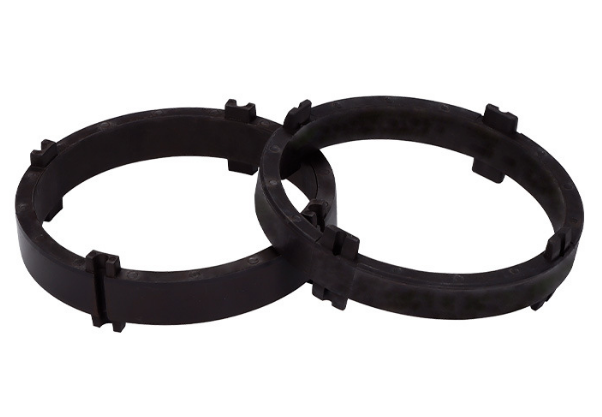

这是一款专用于吊扇无刷直流电机用的多极外转子磁环，配132定子，材质为注塑铁氧体，内充16极（5N5S），具体尺寸是外径152.5mm，内径133.8mm，高度24-39mm，磁性强度在1650高斯左右. 风扇的叶片需要电机驱动从而转动。相对于有刷电机，直流无刷电机具有节能、启动转矩大、启动电流小、速度范围宽的优点。
This is a multi-pole outer rotor magnetic ring specially used for ceiling fan brush DC motor, with 132 stator, made of injection molded ferrite, filled with 16 poles (5N5S), the specific size is 152.5mm outer diameter, 133.8mm inner diameter, 24-39mm height, magnetic strength around 1650 Gauss. The blades of the fan need an electric motor to turn them. Compared with brushless motor, brushless DC motor has the advantages of energy saving, large starting torque, small starting current and wide speed range. Magnetic rotor for energy-efficient motor

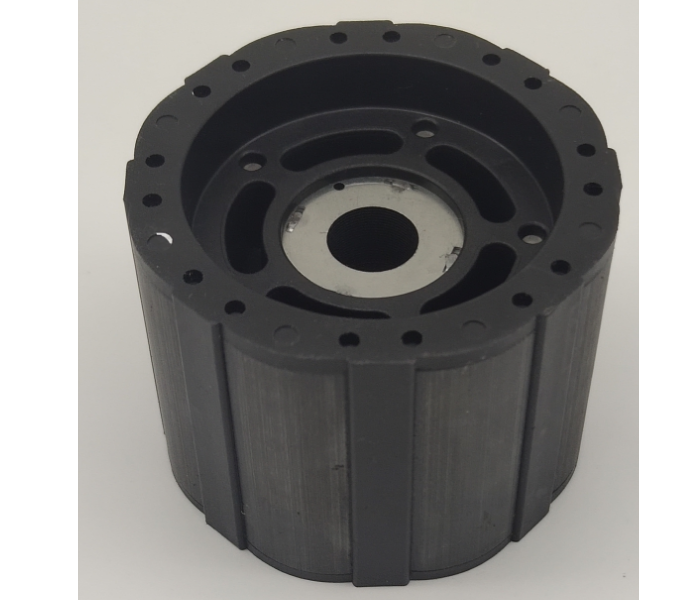

这是一款新型电机永磁转子，常用于低能耗电机。该永磁转子使电机不仅可以节省材料和空间，还可以节省能源，从而使整个产品更加环保。它由不锈钢轴（可带或不带通孔），硅钢材质的铁芯和烧结铁氧体注塑而成。这款产品内孔12mm,外径62.8mm,高度37.8mm,外充8极，功率120W+，更多详情请联系我们。
This is a new type of motor permanent magnet rotor, often used in low energy motor. The permanent magnet rotor enables the motor to save not only materials and space, but also energy, thus making the whole product more environmentally friendly. It is made of stainless steel shaft (with or without through holes), silicon steel core and sintered ferrite by injection molding. The inner hole of this product is 12mm, the outer diameter is 62.8mm, the height is 37.8mm, the outer charge is 8 poles, the power is 120W+, please contact us for more details. |
