宁波睿驰磁材科技有限公司 Ningbo Ruichi Magnetic Technology Co., Ltd 展位号：B231 展出产品：海尔贝克磁环、强磁磁力解锁器、强磁板/磁力棒磁组、叠片粘接磁体、3C电子类磁性组件等
宁波睿驰磁材科技有限公司成立于2020年，总投资1500万元,公司面积4000m²，员工人数50人-100人，通过环境管理体系、质量管理ISO9001等体系认证，是一家稀土永磁领域的高新技术企业，核心业务涵盖稀土永磁体项目开发、磁组装器件定制生产、磁应用技术创新、磁场磁路设计方案输出，以及磁性仪器仪表自动化技术研发等关键领域。
Ningbo Ruichi Magnetic Materials Technology Co., Ltd. was established in 2020 with a total investment of 15 million yuan. The company covers an area of 4,000 m² and has 50-100 employees. It has obtained certifications such as environmental management system and ISO9001 quality management system. It is a high-tech enterprise in the field of rare earth permanent magnets. Its core business includes the development of rare earth permanent magnet projects, customized production of magnetic assembly devices, innovation in magnetic application technology, output of magnetic field and magnetic circuit design solutions, as well as research and development of automation technology for magnetic instruments and meters. Halbach magnet ring
图示为公司生产的一款海尔贝克径向6极磁环，其内圈为强磁作用面，最高表磁可达16000Gs。公司目前自主研发设计、生产制造出2-12极性海尔贝克磁环，可适用于不同情况磁路运用。
The illustration shows a Halbach radial 6-pole magnetic ring produced by the company. Its inner ring serves as the strong magnetic action surface, with a maximum surface magnetic field of up to 16,000 Gs. The company currently independently develops, designs, and manufactures Haierbeck magnetic rings with 2 to 12 poles, which can be applied to different magnetic circuit applications. Strong Magnetic Force Unlocker
图示为公司批量性生产的一款强磁磁力解锁器组件，通过对磁铁磁路设计，使其组件后最高表磁可达20000Gs，可针对于不同的防盗标签定制不同尺寸、规格、等级的强磁解锁器。
The illustration shows a high-strength magnetic unlocking component produced in bulk by the company. By designing the magnetic circuit of the magnet, the component's maximum surface magnetic field can reach 20,000 Gauss. It can be customized in different sizes, specifications, and grades to unlock various anti-theft tags. Strong Magnetic Plate / Magnetic Rod Magnet Set

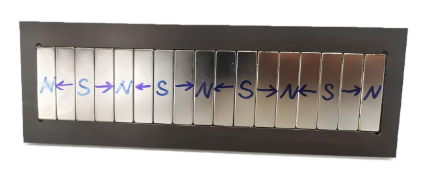

该磁组件为客户定制磁力板，主要作用与吸附传送轨道中吸附杂质，通过海尔贝克磁组件的磁路排列，其最高表磁达13000Gs，与传统阵列高斯提升35%.，也可根据公差定制各种应用磁力棒磁组件。
This magnetic component is a custom magnetic plate for the customer, primarily used to attract and remove impurities from the conveyor track. Through the magnetic circuit arrangement of the Haierbeck magnetic component, its maximum surface magnetic field reaches 13,000 Gs, which is a 35% increase compared to traditional arrays. Various magnetic bar components can also be customized based on tolerances for different applications. Laminated Bonded Magnet
多片粘接磁体的设计（即多重堆叠方法，每个磁体之间需要绝缘）可以减少高效电机的涡流损耗，涡流损耗越小，发热量越低，效率越高，从而保持与整个磁铁相同的磁性能甚至优越；公司在此有相当丰富的经验，可定制各种直片、瓦片、异形的粘接磁体。
The design of bonded magnetic pieces (i.e., multiple stacked layers, with insulation required between each magnet) can reduce eddy current losses in high-efficiency motors. The lower the eddy current loss, the less heat is generated, and the higher the efficiency, while maintaining the same or even superior magnetic performance as a single magnet. The company has considerable experience in this area and can customize various straight, tile-shaped, and specially shaped bonded magnets. 3C Electronics Magnetic Components
涉及3C类磁器声学、电机、磁吸、磁性附件组件。可根据客户提供的公差技术说明和应用方式要求，前期从仿真设计开始，至批量性生产交付，均有专业的技术、工程团队可为客户提供最优质的方案。
Involves 3C-type ceramic acoustics, motors, magnetic attraction, and magnetic accessory components. Based on the tolerance specifications and application requirements provided by the customer, we offer professional technical and engineering teams to provide the best solutions, from preliminary simulation design to mass production and delivery.
|
