东莞市奇为电机科技有限公司 DONGGUAN QIWEI ELECTRIC MACHINERY TECHNOLOGY CO., LTD 展位号：C011 展出产品：QWM-R6210 6+6工位三维全自动绕线机、QWM-R4209 4+4工位多极精密排线绕线机、QWM-R2106 2工位多极粗线型自动绕线机、QWM-R4108 4工位全自动内绕机等 网址：https://www.qw-cn.com
奇为------专注自动化研发20年
奇为公司2012年正式成立，坐落于世界工厂之都——东莞市，是一家专业生产自动化设备及机电自动化绕线机设备的国家高新企业。 奇为公司取得了多项实用新型，外观，发明专利数十余项，主要产品有2+2、4+4、6+6交、直流、无刷三维绕线 机，散热风扇绕线机，定子内外绕线机，多极绕线机等一系列自动化设备，同时为客户提供高效自动化设备生产线。 公司汇集研发、制造、方案综合服务为一体,经过多年的发展,在绕线自动化制造行业中,遥遥领先。 产品设备广泛适用于:空气净化、散热风扇行业、家电、汽车、航空、无人机、医疗等多领域。 奇为公司始终坚持“品质信誉第一位,以市场发展及客户需求为导向,秉持追求卓越”的理念为广大客户提供一流的自动化设备,一流的服务。 未来----奇为公司邀你“共创辉煌”。
QIWEI -- Focusing on automation research and development for 20 years. Founded in 2012, Qiwei Company is located in Dongguan, the factory capital of the world. It is a national high-tech enterprise specializing in the production of automation equipment and mechanical and electrical automatic winding machines. Qiwei Company has obtained a number of practical new models, appearance, invention patents dozens of items, the main products are 2 + 2,4 + 4,6 + 6 ac, DC, brushless three-dimensional winding machine, cooling fan winding machine, stator winding machine, multi-pole winding machine and a series of automation equipment, while providing customers with efficient automation equipment production line. The company integrates R & D, manufacturing, solution integrated services as one, after years of development, in the winding automation manufacturing industry, by far the leading. Products and equipment are widely used in: air purification, cooling fan industry, home appliances, automobiles, aviation, UAV, medical and other fields. The company always adhere to the"Quality reputation first, market development and customer demand-oriented, adhere to the pursuit of excellence" concept for our customers to provide first-class automation equipment, first-class service. In the future, the company invites you to“Create brilliance together”.

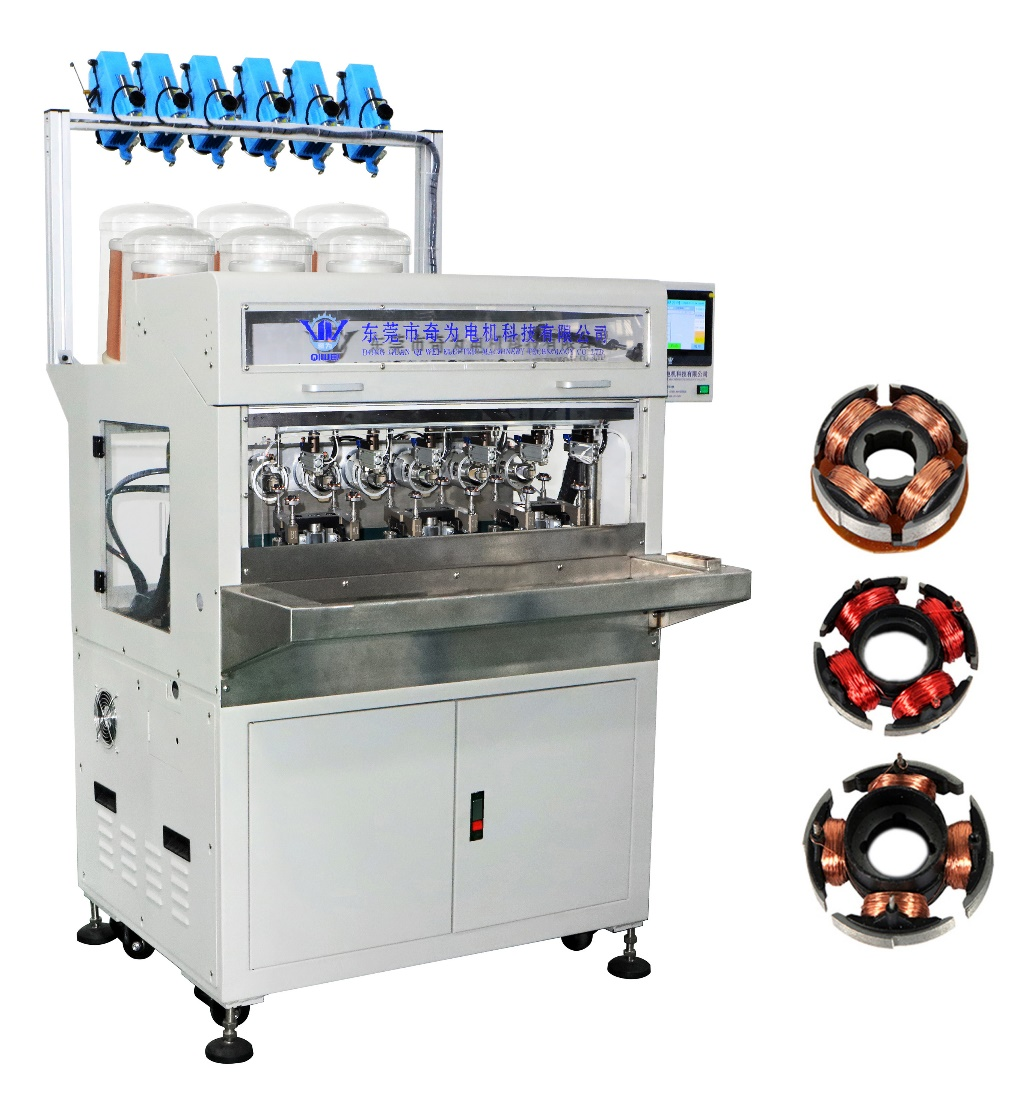

概述：12工位(6工位绕线+6工位装卸)自动绕线,自动排线,自动换极,自动缠PIN角,自动分线,自动剪线头线尾。可存储50种不同规格定子绕线方式。 采用奇为高速控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,追加上下轴运动机构三维运动方式:X、Y、Z三轴方向连动，更实用夹小空间的分线和缠角,缠角更紧密更规则，所绕线包整齐一致,稳定性高。 主机架构及三维动机构部分采用优质铸造件,高精度加工,牢固可靠。 更换夹具结构简单，可在短时间内进行工装夹具互换。 可选配安全光栅.气动剪刀.伺服张力系统等。 适用范围 Φ15-Φ42等散热风扇铁芯高品质绕线 效率参考 Φ26铁芯0.09线径每极260T为例,约600pcs/h
Model：12-station (6-station winding + 6-station loading and unloading) automatic winding, automatic wiring, automatic pole change, automatic winding PIN angle, automatic sub-wire, automatic wire cutting head and tail. Can store 50 different specifications of winding mode. Adopt odd high-speed control system, import precision screw, import Servo Motor Drive, Chinese touch screen interface, add up and down Axis movement mechanism three-dimensional movement mode: x, Y, z three-axis direction linkage, more practical clamp small space of the wire and corner, corner more closely more regular, the winding package neat and consistent, high stability. The main machine frame and the three-dimensional moving part are made of high-quality castings, which are processed with high precision and are firm and reliable. The replacement fixture has simple structure and can be exchanged in a short time. Optional safety grating. Pneumatic scissors. Servo tension system, etc. . Application Range φ15-φ42 cooling fan iron core high quality winding efficiency reference Φ26 iron core 0.09 wire diameter per pole 260T for example, about 600pcs/h.

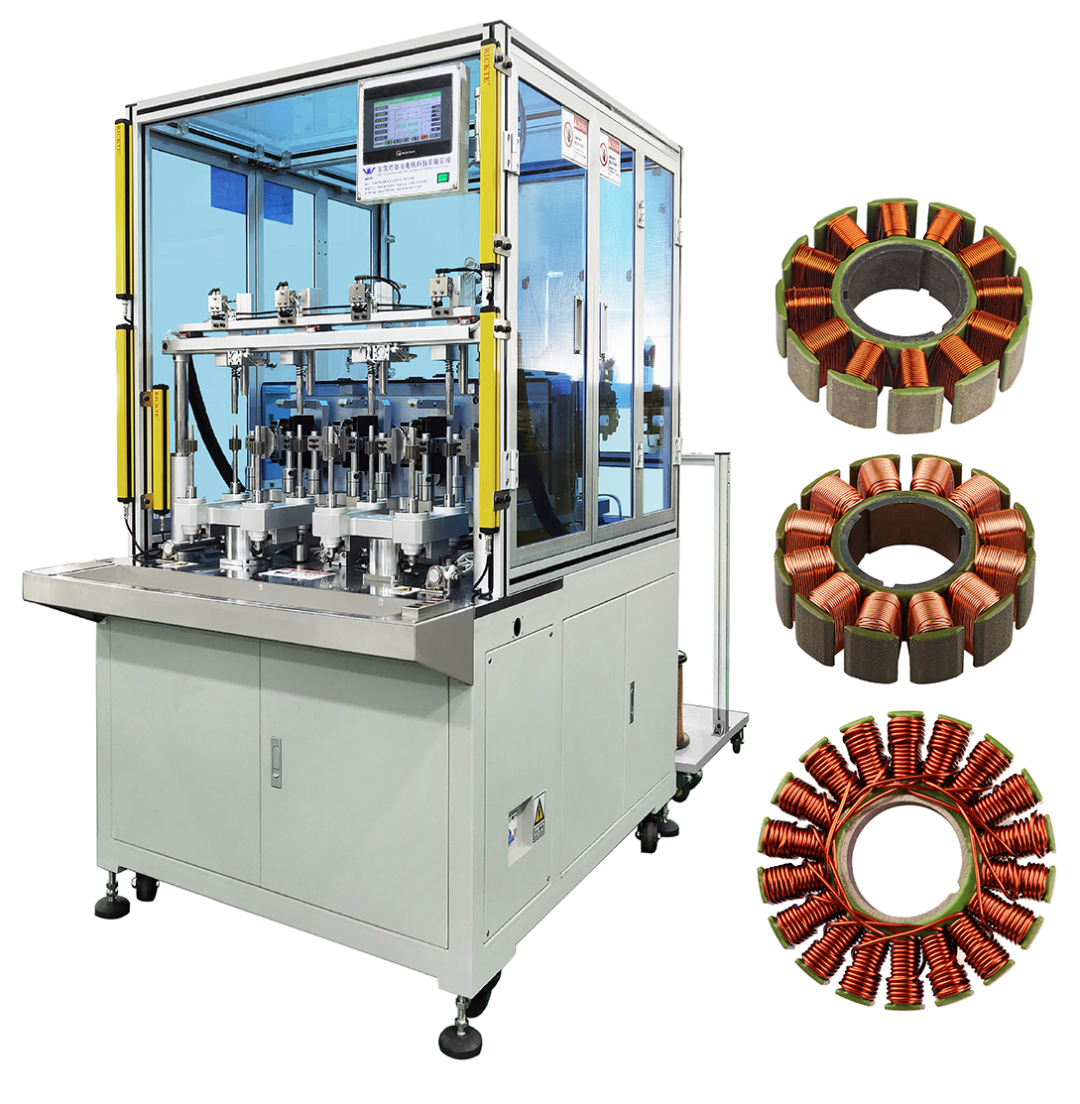

概述：8工位(4工位绕线+4工位装卸)自动绕线,自动精密排线,自动换极,自动分线,自动抽头，自动剪线头线尾。 采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,采用独立伺服驱动分度机构提高漆包线入槽的稳定性使线包更整齐一致。 主机架构采用优质铸造件,高精度加工,牢固可靠。 工装夹具均采用进口材料，特殊热处理及多项打磨工艺，精度高，耐磨性能好。 适用范围 多极外绕对排线要求更高的电机等高品质绕线，适用于矽钢片外径￠30mm-￠120mm多极无刷产品。 效率参考 以客户样品要求评估产量
Model：8 station (4 station winding 4 station loading and unloading) automatic winding, automatic precision wiring, automatic pole changing, automatic wire division, automatic tapping, automatic wire cutting head tail. The main frame adopts high-quality casting, high-precision processing, firm and reliable. The jigs and fixtures are made of imported materials, special heat treatment and several grinding processes, with high precision and good wear resistance. Scope of application Multi-pole winding for high-quality winding such as motor, which requires higher wire arrangement, is suitable for silicon steel sheet outer diameter 30mm-120mm multi-pole brushless products. Efficiency Reference Evaluate the output based on customer sample requirements.

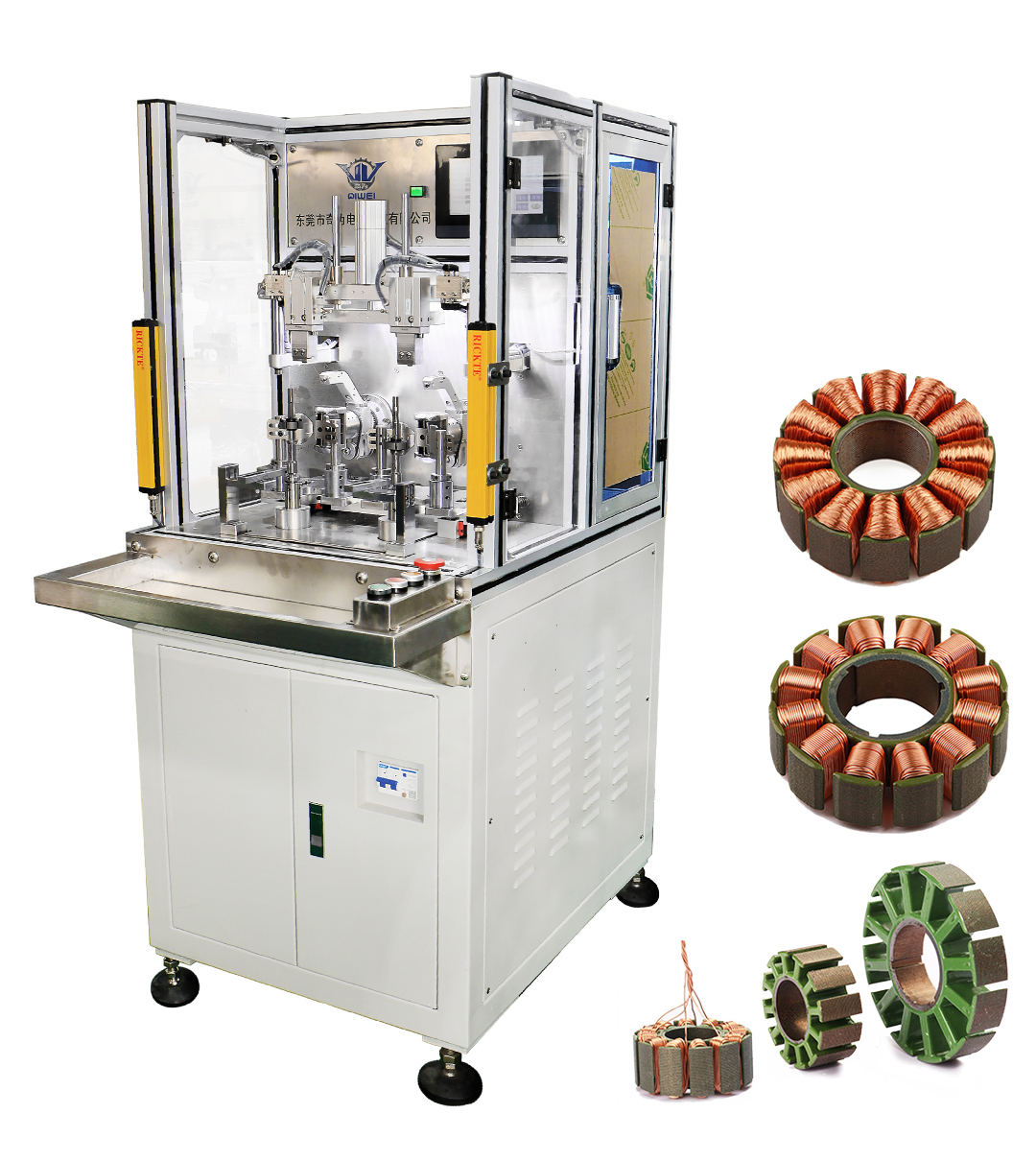

概述：2工位自动绕线,自动排线,自动换极,自动剪线头线尾.多极绕线设备，铝型材罩壳，装置安全光栅。 采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面，所绕线包整齐一致，稳定性高。 主机结构采用优质铸造件，高精度加工,牢固可靠。 利用线咀翻转结构可对应于多样式的铁芯. 工装夹具均采用进口材料，特殊热处理及多项打磨工艺，精度高，耐磨性能好。 适用范围 适用于￠30mm-￠120mm多极无刷定子高品质绕线。 效率参考 以矽钢片直径：36mm，线径：0.31mm，6极绕55圈为例，每小时产量约为200pcs/h
2 Stations Multi-pole Thick Wire Automatic Winding Machine Overview 2 stations automatic winding, automatic wiring, automatic pole changing, automatic cutting line head and end. Multipole winding equipment, aluminum profile housing, optional device safety grating. Adopting Qiwei high-speed control system, imported precision lead screw, imported servo motor drive, English touch screen interface, to achieve uniform winding package, high stability. The utility model is suitable for high quality winding of 30mm-120mm multi-pole brushless stator. Efficiency Reference: silicon steel sheet diameter: 36mm, wire diameter: 0.31 mm, 6 Poles winding 55 times as an example, the output is about 200pcs/h

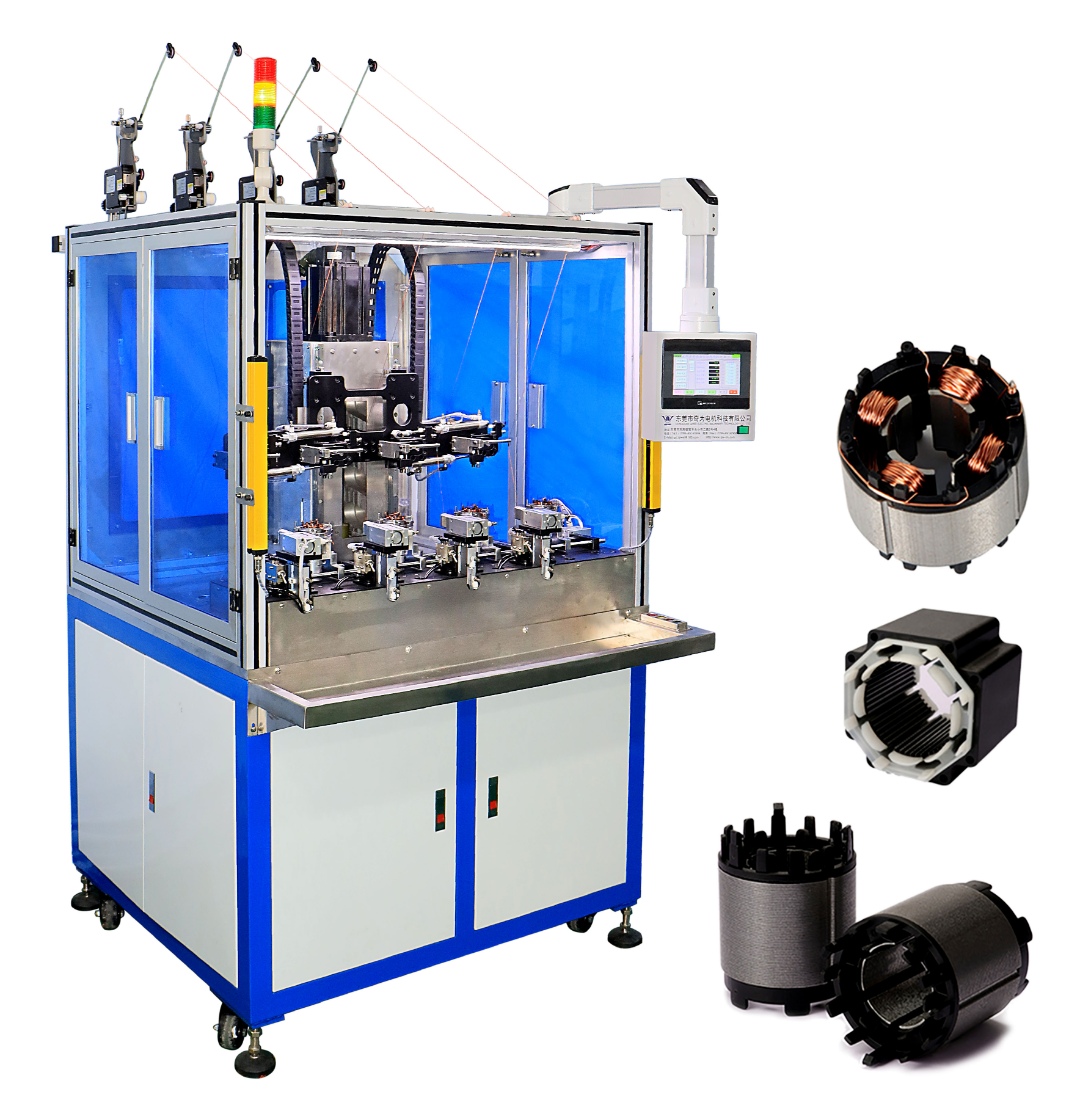

概述：QWM-R4108型绕线机是一种4工位内绕机，自动绕线、自动接线、自动换极、自动切断线头和线尾。多极绕组设备，铝型材外壳，可选配安全格栅装置。
采用奇为专用控制系统,进口精密丝杆,进口伺服电机驱动,中文触摸屏界面,采用独立伺服驱动分度机构提高漆包线入槽的稳定性使线包更整齐一致。 主机架构采用优质铸造件,高精度加工,牢固可靠。 工装夹具均采用进口材料，特殊热处理及多项打磨工艺，精度高，耐磨性能好。 适用范围 适用于内径至少不小于Φ 10mm但不大于φ 100mm，定子高度小于100mm的多槽无刷内绕产品。
Model：QWM-R4108 type winding machine is a kind of 4-position inner winding machine, which is automatic winding, automatic wiring, automatic pole changing and automatic cutting of wire head and wire tail. Multi-pole winding equipment, aluminum shell, optional safety grille device. Using special control system, imported precision screw, imported servo motor drive, Chinese touch screen interface, using independent servo drive indexing mechanism to improve the stability of enameled wire slot to make the package more uniform. The main frame adopts high-quality casting, high-precision processing, firm and reliable. The jigs and fixtures are made of imported materials, special heat treatment and several grinding processes, with high precision and good wear resistance. Applicable range for multi-slot brushless inner winding products. The inner diameter is not less than Φ10 but not more than Φ100, and the stator height is less than 100mm. |
