常州百科测控技术有限公司 Changzhou Baike Measurement And Technology Co., Ltd 展位号：C005 展出产品：无刷电机测试系统、步进电机测试系统、伺服电机测试系统、反电势测试系统等 网址：www.czbaike.com
常州百科测控技术有限公司，2006年6月成立，专业致力于各类测功机系统、稳压电源及非标测试系统的研发、生产、销售和技术服务。成立至今，已为国内外多家企业、检测机构和科研院所提供测试设备及服务保障，广受好评，深得信赖。
公司主导产品有：ZF磁粉测功机、ZC磁滞测功机、DW电涡流测功机、DL电力测功机、BK系列稳压电源，广泛应用于各类型电机（如：单三相异步电机、同步电机、直流电机（包括有刷电机、无刷电机）、串激电机、电动车电机、起动马达、汽车用电机等）、电动工具、减速机、齿轮箱、执行器等的输入电压、电流、功率和输出转矩、转速、功率、效率、温度、角度、反向电动势等性能检测，并形成报表及特性曲线，更好的满足和适应了客户需求。
Changzhou Baike Measurement and Control Technology Co., Ltd., established in June 2006, specializes in the research and development, production, sales and technical services of various dynamometer systems, regulated power supplies and non-standard test systems. Since its establishment, it has provided testing equipment and service guarantees for many domestic and foreign companies, testing institutions and scientific research institutes, and is widely praised and trusted. The company’s leading products include ZF magnetic powder dynamometer, ZC hysteresis dynamometer, DW eddy current dynamometer, DL Servo motor loading test system, BK series regulated power supplies, which is widely used in various types of motors (such as single three-phase asynchronous Input voltage for motors, synchronous motors, DC motors (including DC brush motor, brushless motor), series motors, electric vehicle motors, starter motors, automotive motors, etc.), power tools, reducers, gearboxes, actuators, etc., Current, power and output torque, speed, power, efficiency, temperature, angle, back electromotive force and another performance testing, and form reports and characteristic curves to better meet and adapt to customer needs. Brushless Motor Test System

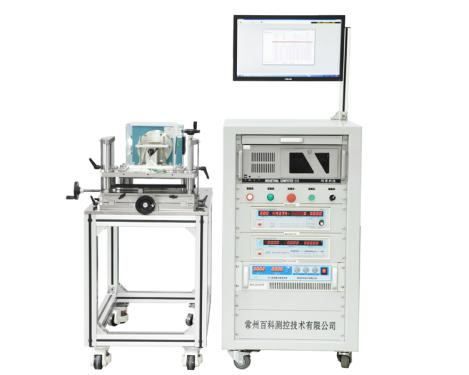

BK-EM6000-Ⅰ无刷电机测试系统，通过测功机给无刷电机加载，配套专用仪器，可以测试无刷电机的常规参数、无刷电机控制器输入、输出参数、无刷控制器的效率及整机效率，记录保存所有数据和曲线; 适用于无刷电机及无刷电机控制器的研发测试、生产测试。
The BK-EM6000-Ⅰ brushless motor test system is designed to test brushless motors and controllers. It uses a dynamometer to load the motor and comes with specialized instruments to measure the motor's basic parameters, as well as the input and output parameters of the controller. The system can also measure the efficiency of the controller and the overall efficiency of the system. It records and saves all data and curves, and is suitable for research and development testing as well as production testing of brushless motors and controllers. Stepper Motor Test System

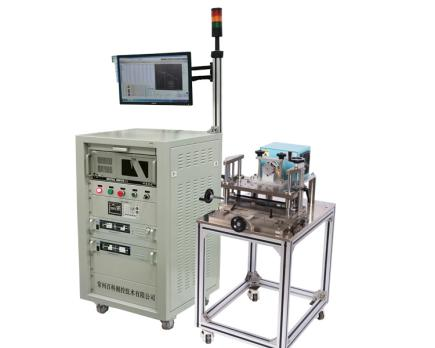

BK-EM7000-I步进电机测试系统，可以测试步进电机在不同频率下的失步力矩，可以多种模式控制被测电机，根据设定好的步骤和流程进行测试，记录保存所有数据和曲线。主要用于步进电机的研发测试。
The BK-EM7000-I stepper motor test system can test the detent torque of the stepper motor at different frequencies. It can control the motor being tested in various modes and perform testing based on preset steps and procedures, recording and saving all data and curves. It is mainly used for research and development testing of stepper motors. Servo Motor Test System

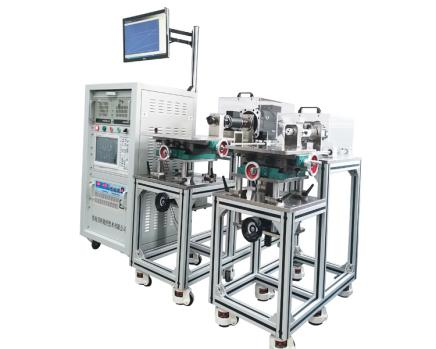

BK-EM9000-Ⅰ伺服电机测试系统，是通过伺服电机给被测电机加载，通过高精度转矩转速传感器及高精度功率计读取参数，可实现测量被测电机的常规参数，以及稳态测试、动态测试、耐久性测试、堵转测试、工况测试、温升测试、正反转测试、反电动势测试等等，主要用于被测电机的研发测试。
The BK-EM9000-I servo motor test system loads the motor being tested through a servo motor, uses high-precision torque-speed sensors and power meters to measure the motor's conventional parameters, and is able to perform steady-state testing, dynamic testing, durability testing, locked rotor testing, working condition testing, temperature rise testing, forward and reverse testing, back electromotive force testing, etc. It is mainly used for research and development testing of the motor being tested. Back-EMF test system

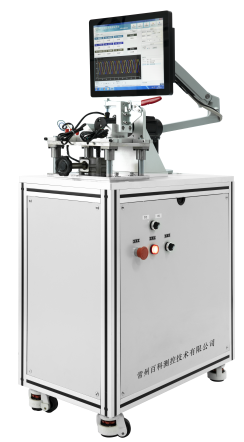

BK-TM9000-II反电动势测试系统，将被测电机拖动至规定的转速，由反电动势测试系统快速检测反向电动势最大值、Rms值、频率，电机转速，转向，并绘制三相电动势波形图；
能够显示霍尔Hu、Hv、Hw波形；能够显示电机反电势波形与霍尔波形的相位差。从而验证设计产品是否满足技术要求。
The BK-TM9000-II Back Electromotive Force Test System is used to quickly detect the maximum value, Rms value, frequency, rotation speed, direction, and draw three-phase electromotive force waveform diagram of the reverse electromotive force of the tested motor when the motor is dragged to the specified speed. It can display the waveforms of Hall sensors Hu, Hv, and Hw and show the phase difference between the motor's reverse electromotive force waveform and Hall sensor waveform. This is used to verify whether the designed product meets the technical requirements. |
