深圳市星创磁业有限公司 ABM MagneticsCo.,Ltd. 展出产品：烧结钕铁硼磁铁、 模压粘接钕铁硼磁铁、永磁组件等 展位号：C167 网址：www.abm-magnetics.cn
ABM磁业有限公司专注于磁性材料&组件的制造及方案解决。我们秉承“以人为本，资源优化，价值共享，永续经营”的经营理念。在这里，拥有十几年行业经验的工程精英可以提供您更经济，快速，专业的服务：1.供应各类永磁及磁性组件；
2.帮助客户提供磁性领域的优化方案；
3.通过有效的品保核心工具（TS/16949：APQP，PPAP，FMEA，MASA&SPC）来确保品质；
4.提供全套的模拟及测试以保证产品的可靠性；
5.内部的物流部门将提供更经济，快捷的货运服务。

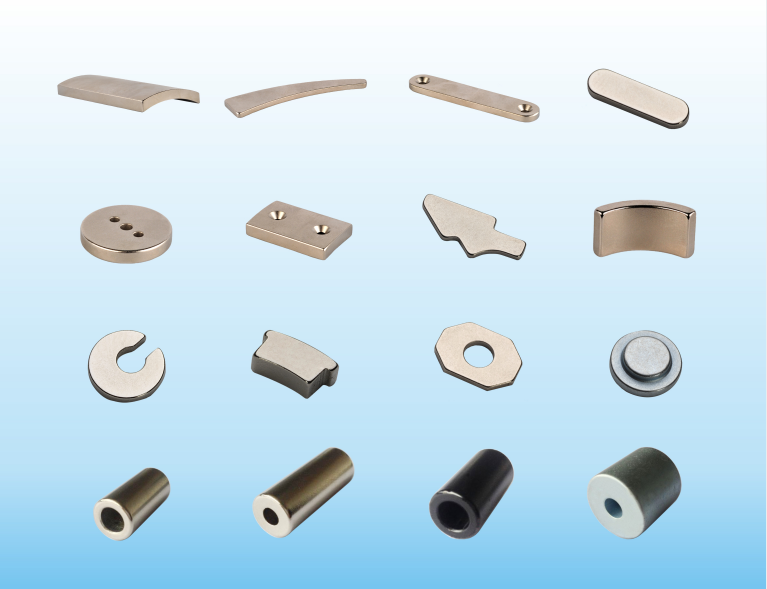

ABM Magnetics Co., Ltd. focuses on the manufacture and solution of magnetic materials & components. We adhere to the business philosophy of "people-oriented, resource optimization, value sharing, and sustainable management". Here, engineering elites with more than ten years of industry experience can provide you with more economical, fast and professional services: 1. Supply all kinds of permanent magnets and magnetic components; 2. Help customers provide optimized solutions in the magnetic field; 3. Ensure quality through effective quality assurance core tools (TS/16949: APQP, PPAP, FMEA, MASA&SPC); 4. Provide a full set of simulation and testing to ensure product reliability; 5. The internal logistics department will provide more economical and fast freight services. SNdFeB Magnet
1.剩磁：11000-14500 Gs，内禀矫顽力：11000-30000 Oe，磁能积：35-50MGOe 2.电镀：镀镍，镍铜镍，锌，银，金，环氧树脂，聚对二甲苯等 3.电镀后具有较高的抗腐蚀性能：盐雾试验：24小时到72小时 4.工作温度：80摄氏度到210摄氏度 5.结构与尺寸：各种尺寸的瓦形，圆片，圆环，方形及异型 6.充磁方式：轴向端面多极，径向两极特殊的充磁方式 7.磁性组件：高精度的装配及一致性

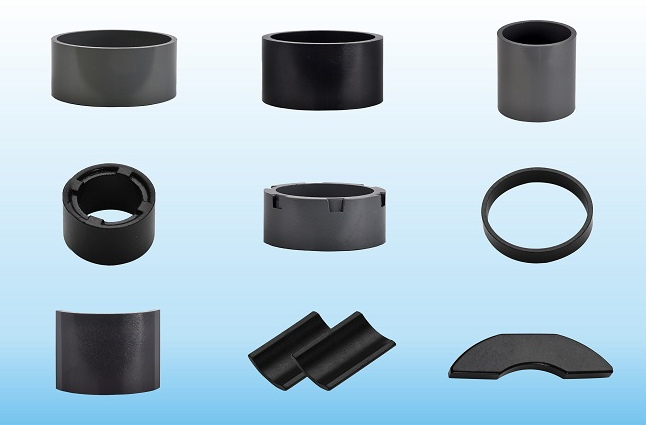

1. Remanence: 11000-14500 Gs, intrinsic coercivity: 11000-30000 Oe, magnetic energy product: 35-50MGOe 2. Electroplating: nickel plating, nickel copper nickel, zinc, silver, gold, epoxy, parylene, etc. 3. High corrosion resistance after electroplating: Salt spray test: 24 hours to 72 hours 4. Working temperature: 80 degrees Celsius to 210 degrees Celsius 5. Structure and size: various sizes of tiles, discs, rings, squares and special shapes 6. Magnetization method: Axial end face multi-pole, radial two-pole special magnetization method 7. Magnetic components: high-precision assembly and consistency BC NdFeB Magnet
1.比注塑粘接钕铁硼有高很多的磁性能 2.剩磁：3500-8000 Gs，内禀矫顽力：4000-16000 Oe，磁能积：3-12MGOe 3.电泳后，比注塑粘接钕铁硼有更高的抗腐蚀性能力，盐雾试验可达72小时 4.最大工作温度：200摄氏度 5.比烧结NdFeB有更灵活的充磁方式：可多极充磁在圆环的外径，内径，辐射充磁，端面多极充磁，螺旋充磁等。

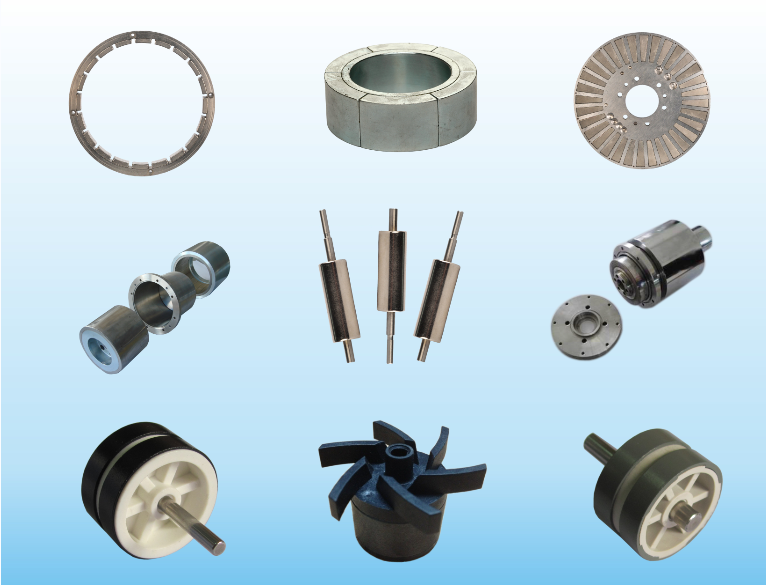

1. Much higher magnetic properties than injection bonded NdFeB 2. Remanence: 3500-8000 Gs, intrinsic coercivity: 4000-16000 Oe, magnetic energy product: 3-12MGOe 3. After electrophoresis, it has higher corrosion resistance than injection bonding NdFeB, and the salt spray test can reach 72 hours 4. Maximum operating temperature: 200 degrees Celsius 5. It has a more flexible magnetization method than sintered NdFeB: multi-pole magnetization can be performed on the outer diameter and inner diameter of the ring, radiation magnetization, end face multi-pole magnetization, spiral magnetization, etc. Magnetic Assemblies
1.我们的团队专业设计生产永磁组件 2.零部件包括钕铁硼磁铁，钐钴磁铁，钢轴，钢套 3.使用高结合力，耐高温胶水组装 4.磁组件广泛应用在水泵，油泵联轴器（磁铁可装在里面和外面），电动马达，音圈电机，高速转子，开锁器，核磁共振，传感器和编码器等 5.优点：高性能、重量轻、良好的机械性能、良好的动平衡
1. Our team specializes in the design and production of permanent magnet assemblies 2. Parts include NdFeB magnets, SmCo magnets, steel shafts, steel sleeves 3. Use high bonding force, high temperature resistant glue to assemble 4. Magnetic components are widely used in water pumps, oil pump couplings (magnets can be installed inside and outside), electric motors, voice coil motors, high-speed rotors, unlockers, nuclear magnetic resonance, sensors and encoders, etc. 5. Advantages: high performance, light weight, good mechanical properties, good dynamic balance |
