鑫宝达电机丨专注于空心杯电机及无刷电机,年产800多万台
发布:2019-12-28

深圳市鑫宝达电机有限公司

展位号:A738

展出产品:空心杯稀有金属电刷直流电机空心杯碳刷直流电机、空心杯无刷直流有感电机

联系方式:0755-85215266

网址:www.sinbad-motor.com

公司简介


深圳市鑫宝达电机有限公司成立于2011年6月,是一家专业从事空心杯电机及无刷电机的设计、研发、生产、销售的高新技术企业。准确的市场定位、高效而专业的研发团队,优质的产品和服务使本公司自创建以来一直高速发展。


公司拥有完整、科学、严谨的质量管理体系,并拥有国内最先进的生产和检测设备,年产各类型电机超过800万台,产品远销欧、美和东南亚等发达国家和地区。广泛应用于医疗器械、家用电器、信息通讯、航空模型、电动工具、美容仪器、精密仪器和电动玩具等多个领域!


Shenzhen Sinbad Motor Co., Ltd. was established in June 2011,which is a high-tech enterprise specializing in the design, development, production and sales of coreless motors and BLDC motors. Accurate market positioning, efficient and professional R&D team, and high-quality products with best services have enabled the company to develop rapidly since its inception.

The company has a complete, scientific, and rigorous quality management system, furthermore has the most advanced production and testing equipment in China. It can produce more than 8 million types of motors each year and exported to Europe, the United States, Southeast Asia and other developed countries. Widely used in medical equipment, home appliances, information and communications, aviation models, power tools, beauty equipment, precision instruments and electric toys and other fields!

部分展品

01

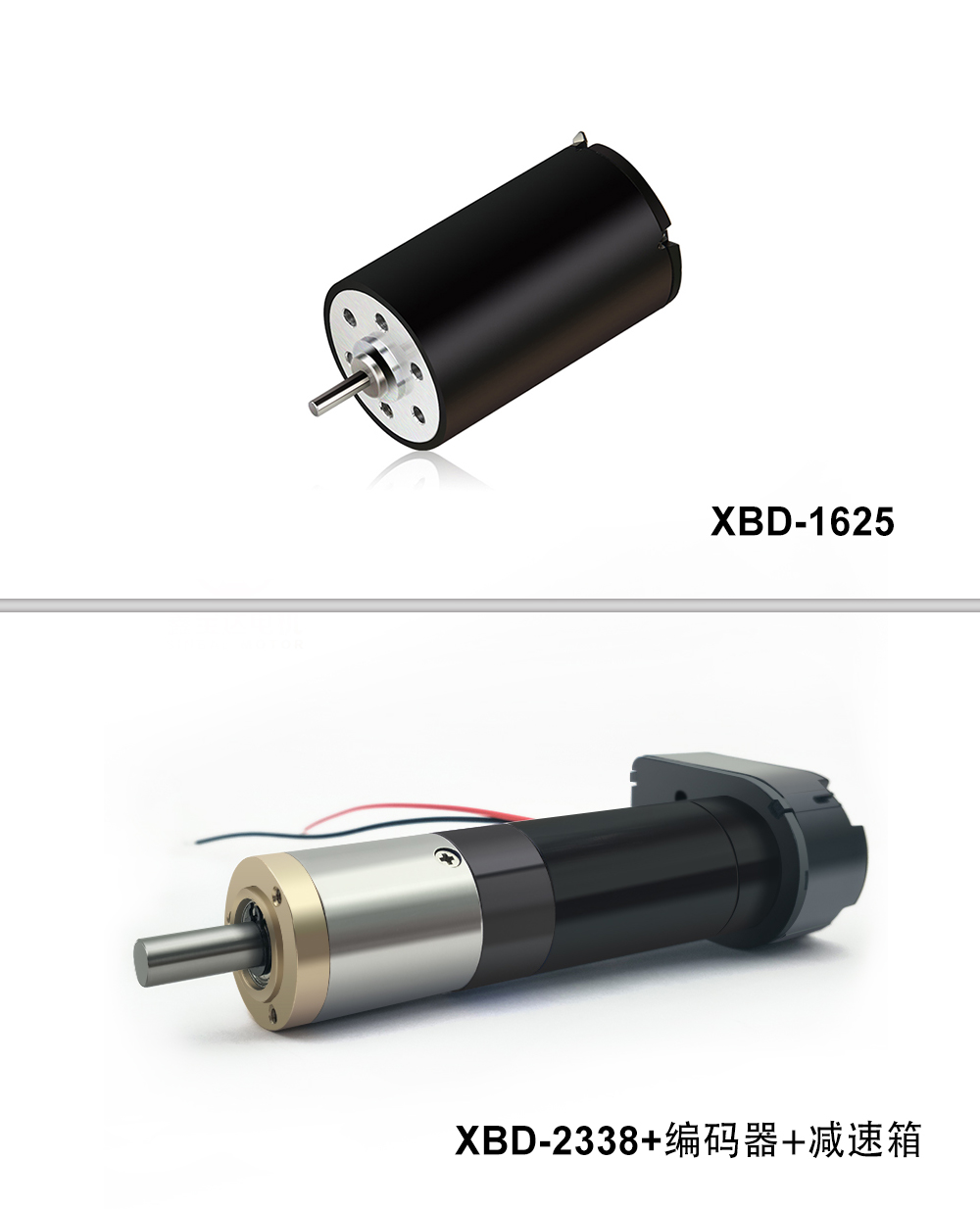

空心杯稀有金属电刷直流电机

Coreless DC Gear Motor






电机的绕组为自承式空心杯线圈,转子惯量极小,无铁损,无齿滞,响应极快,动力学极佳。

换向系统为精密合金,接触电阻极小,主要用于小功率,小体积的电机。

可配高精密减速箱以加大扭矩,也可配高分辨率编码器实现伺服控制。

The motor winding is a self-supporting hollow cup coil which has the advantage of  Minimal rotor inertia , no iron loss or tooth resistance,  fast response and excellent dynamics.

The commutation system is a precision alloy with a very low contact resistance mainly used for small power and small size motors.

The motor can be equipped with a high-precision gearbox to increase the torque, and it can also be equipped with a high-resolution encoder for servo control.

02

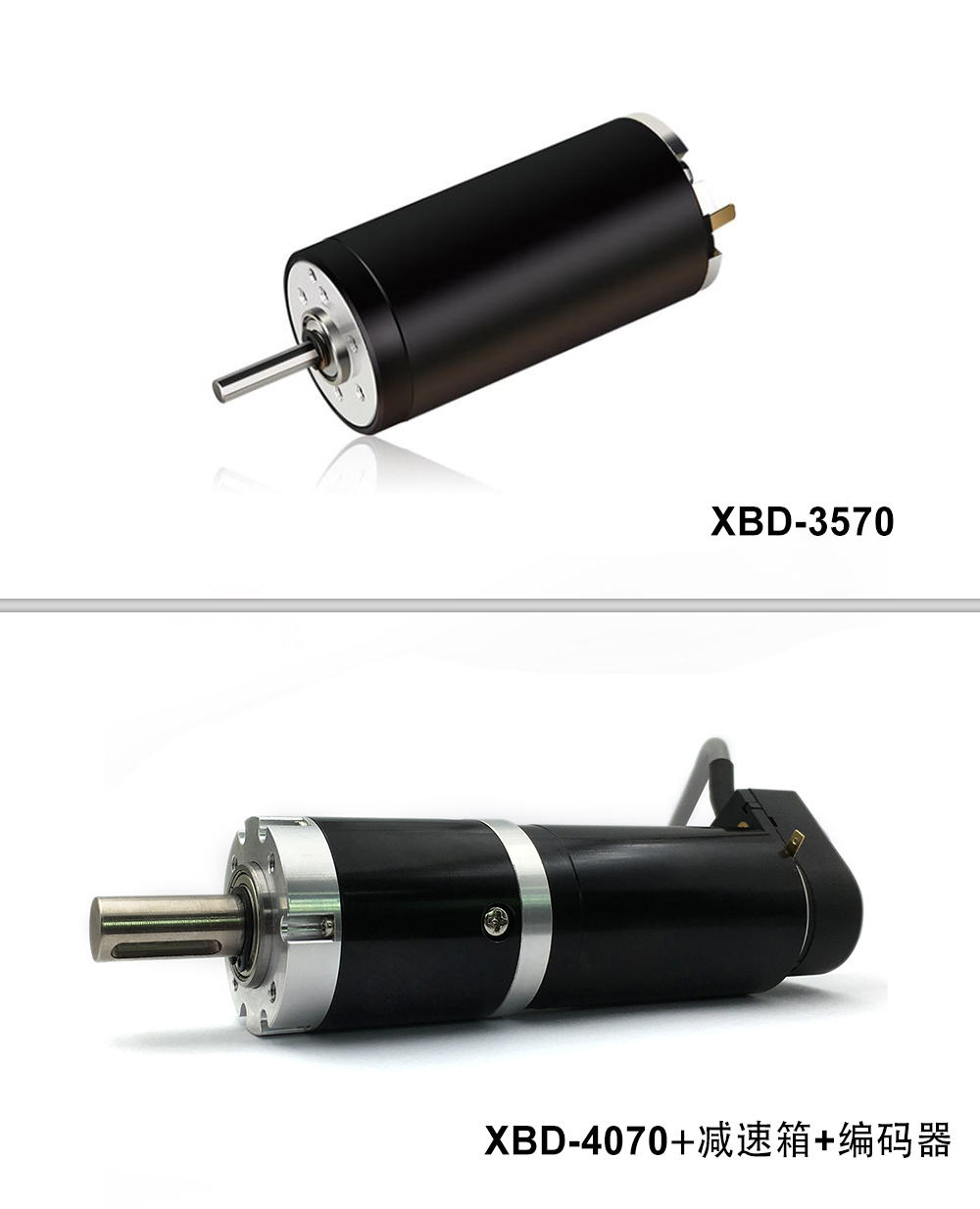

空心杯碳刷直流电机

Coreless Brushed DC Motor with Encoder






直径32-40mm,长度可定制。

电机独特的绕线技术及碳刷设计最大功率可达400W,且能寿命超长,可连续运行3000H;能效转换率高,最高效率可达90%。可配精密行星减速箱,以达到更大的扭矩,也可配光学编码器以实现对电机的精确控制,应用广泛。

Motor diameter is 32 to 40mm and length can be customized.

Unique motor winding technology and carbon brush design can achieve maximum power up to 400W. The lifetime of the motor is very long and up to 3000 hrs continuous operation; Very high energy efficiency conversion rate and the highest efficiency can be up to 90%. This motor Can be equipped with precision planetary gearboxes to achieve greater torque, and can also be equipped with optical encoders to achieve precise control of the motor, which  widely used for many fields.

03

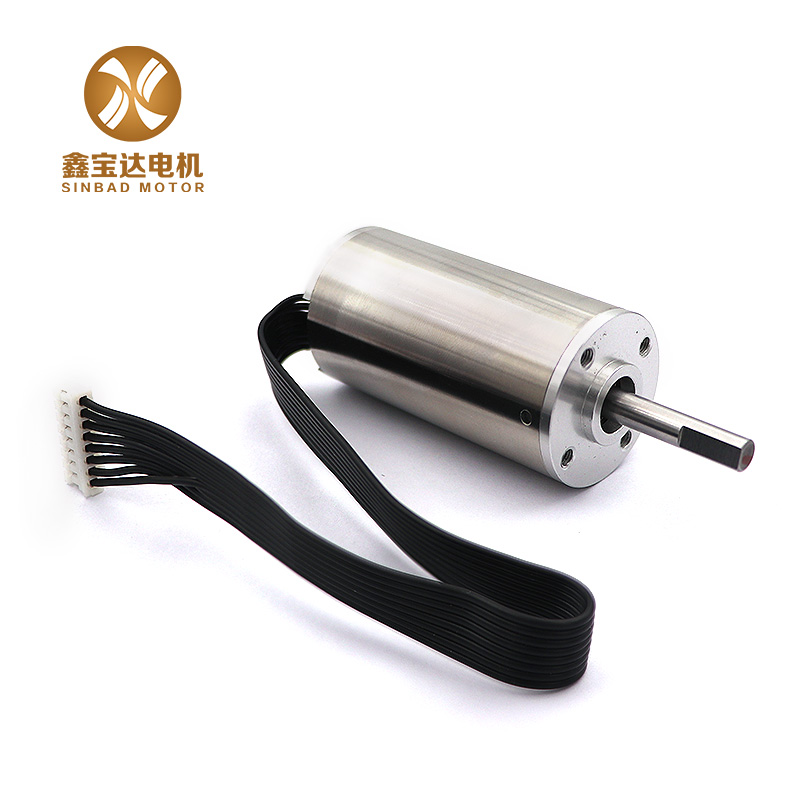

空心杯无刷直流有感电机

Coreless brushless DC motor with Hall Sensor






空心杯无刷电机寿命主要受限于轴承的使用寿命和电子元件的寿命,在正常条件下,一般平均寿命均可超过10000H。且有与空心杯有刷电机一样的能量密度,能效转换率最高可达80-90%;可实现无HALL驱动,内置HALL传感器可实现伺服控制

The lifetime of the Coreless brushless DC motor is mainly limited by the service life of the bearing and the lifetime of the electronic components. The average lifetime expectancy can exceed 10000 hrs which has the same energy density as the coreless brushed motor and the energy efficiency conversion rate can reach 80-90%. This BLDC Can realize no HALL drive, built-in HALL sensor can achieve servo control.

-The end-
